Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Chamber Size for Precision PVD Coating

Brand Name : Zhongda

Certification : CE

Place of Origin : Zhaoqing, Guangdong

MOQ : 1

Delivery Time : 20

Coating Power Supply : DC/RF/AC

Coating Process : Vacuum Evaporation

Coating Density : ≥99.9%

Coating Thickness : 0.1-10 microns

Coating Technology : Multi Arc Ion

Coating Application : Decorative, Functional, Protective

Coating Color : Silver, Gold, Rose Gold, Black, etc.

Coating Uniformity : ≤±5%

Coating Hardness : ≥Hv800

Coating Adhesion : ≥Grade 1

Coating Substrate : Metal, Glass, Ceramic, Plastic

Coating Chamber Size : Customized

Coating Control System : PLC/Touch Screen

Coating Temperature : ≤200℃

Coating Size : Customized

Coating Speed : 1-4m/min

Coating Source : Arc Evaporation

Coating Material : Metal

Contact Now

Multi Arc Ion Jewelry Gold PVD Coating Equipment
Advanced PVD vacuum coating ion plating machine for high-quality surface finishing across multiple industries.
Technical Specifications
Vacuum Chamber Ф700×H1000mm | Ф1000×H1200mm | Ф1200×H1200mm | Ф1400×H1200mm | Ф1600×H1200mm | Ф1800×H1300mm
Applications Watch industry, 3C industry, sanitary appliance industry, jewelry industry, watch accessories, cell phone accessories, glasses frame, clothing, decorative lighting, sanitary ware, hardware suitcase, glass, ceramic and plastic
Coating Films Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black
Vacuum System Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump (customized to requirements)
Power Supply DC power, MF power, pulse power (bias power, arc power)
Ultimate Vacuum 1.0-6.0×10⁻⁴Pa, Non-loading cooling
Arc Source 4-18 sets (200A-300A) depending on chamber size
Bias Power 20KW-60KW depending on chamber size
Rotation System Multi-axis planetary with frequency control (adjustable)
Baking Temperature Normal temperature to 300℃-450℃-600℃ (PID temperature control)
Gas System 3-4 way working gas flow control with auto gas adding system (Ar, N₂, O₂, C₂H₂)
Cooling Method Water cooling circulation with industrial cooling tower, water chiller, or cryogenic system
Control System Manual, semi-automatic, automatic, touch screen operation, PLC or computer controlled
Key Features & Benefits
Double Layer Vacuum Chamber
Constructed with double layer stainless steel 304 using advanced welding technology to ensure superior air tightness, better vacuum pressure protection, higher ultimate vacuum, and extended service life. Built-in high power heater maintains precise chamber temperature.
Excellent Vacuum Pumping System
Features renowned Chinese brand pumps for fast, steady vacuum performance, ensuring high efficiency coating cycles while reducing vibration and energy consumption. Import brand pumps (Leybold, Osaka, Shimadzu, Pfeiffer) available upon request.
10th Generation Arc Source Technology
Equipped with high-performance arc power supply and cathode arc source devices for more uniform coating films and reliable continuous coating performance.
Advanced Control System
Utilizes international cutting-edge electrical components including Siemens and Mitsubishi PLC systems. Touch screen interface with automatic coating system programmed specifically for customer products.
Application Examples
Gold Head with IP Color
Achieve high-level quality colors including IP black and IP gold, elevating product quality and grade. Integrated magnetron sputtering targets available.
Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Chamber Size for Precision PVD Coating

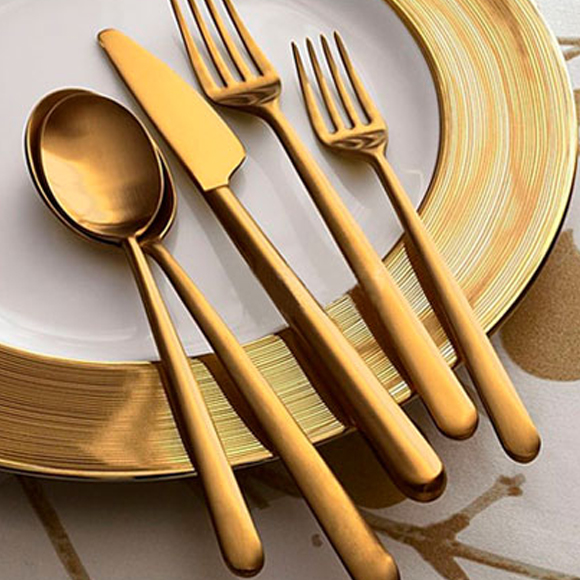

Tableware with Gold Coating
Transform tableware into glistening, high-value products with our multi-arc target technology. Coating provides exceptional hardness and firmness.
Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Chamber Size for Precision PVD Coating
Furniture with Gold Finish
Ideal for luxury hotels and high-end residential applications. Gold coatings maintain their appearance for over 10 years, ensuring long-lasting elegance.
Custom designs and special machines available according to customer requirements. Additional magnetron sputtering targets and MF twins targets can be integrated.
